Needlework and Counted Cross Stitch Framing: Proper Support for Fabric Art

Needlework framing for needlework and counted cross stitch are very different from prints, photographs, and other works on paper. Fabric needs to be supported evenly, kept square, and mounted without damaging the stitching.

Proper framing begins with how the fabric is prepared before it ever goes into the frame.

At JW Frame Crafters, I use acid-free foamboard and cotton batting. Stainless steel tailor’s pins stretch needlework before framing. This supports the fabric art.

Preparing the Needlework

Before framing, the fabric is examined for its overall condition, shape, and tension.

Counted cross stitch and other needlework can easily become distorted during stitching, storage, or handling. The fabric may pull slightly out of square, especially around heavily stitched areas.

The goal during mounting is to gently bring the piece back into alignment without over-stretching the fabric.

Care is taken to center the design properly. Enough fabric must remain for secure mounting around the stitched area.

Using Acid-Free Foamboard

The needlework is mounted over acid-free foamboard.

This creates firm, stable support behind the fabric. It separates the textile from materials that could cause deterioration.

The board is cut specifically for the piece so the fabric can be positioned evenly and accurately.

Using a rigid support also helps keep the finished needlework flat once it is inside the frame.

Adding Cotton Batting

I place a layer of cotton batting between the needlework and the acid-free foamboard.

The batting creates a soft surface beneath the fabric and gives the finished piece a subtle amount of dimension.

It also helps prevent the needlework from looking unnaturally flat against the mounting board.

The amount of batting used depends on the particular piece and the appearance desired. The goal is to support the textile without making it overly padded or rounded.

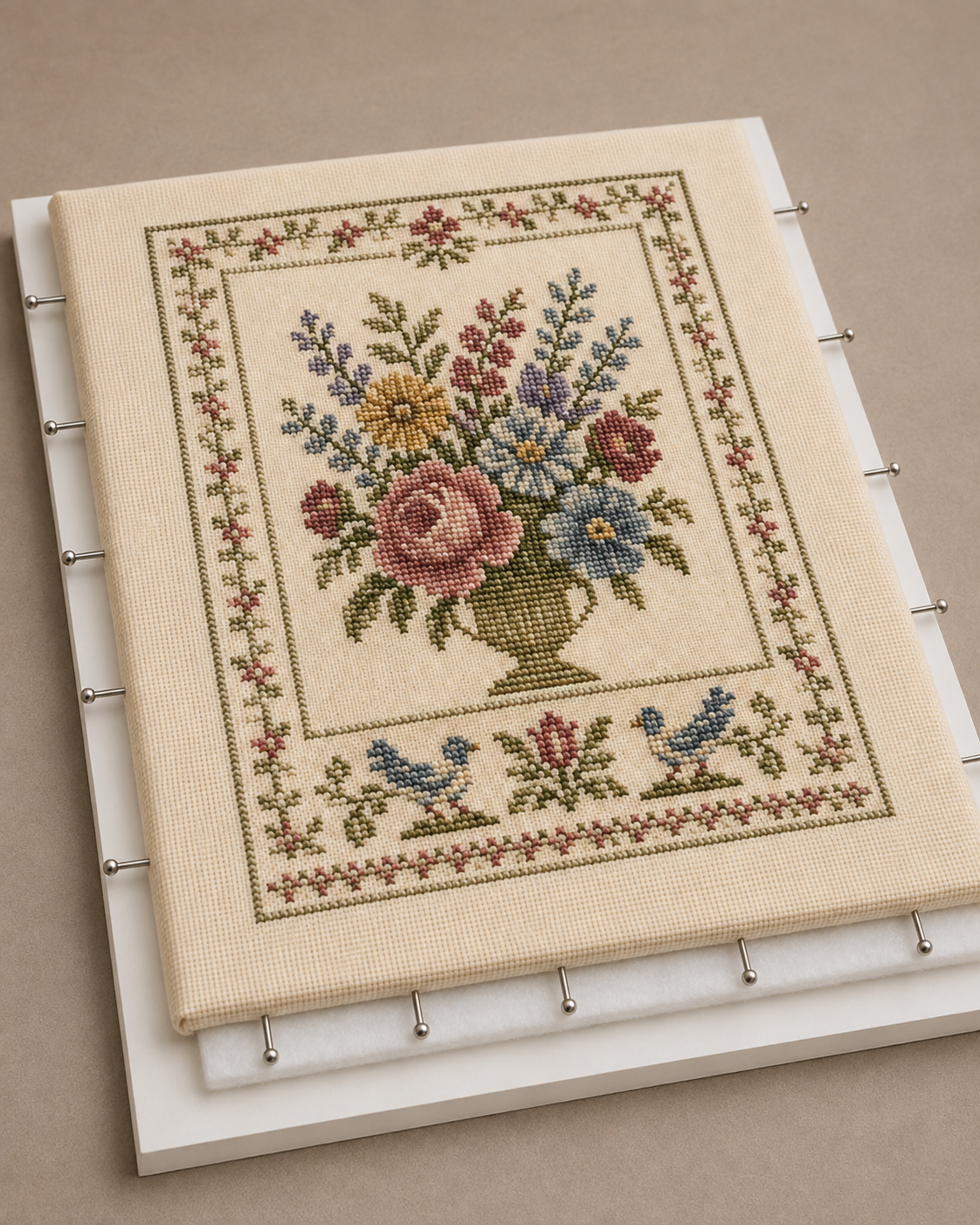

Stretching with Stainless Steel Tailor's Pins

Once the needlework is positioned over the batting and foamboard, I stretch it by hand.

I use stainless steel tailor's pins around the edges of the mounting board to hold the fabric in place.

Working gradually from side to side allows the tension to be adjusted carefully. This helps keep the weave straight and the design properly aligned.

Stainless steel is important because it resists corrosion and is suitable for long-term contact around the textile.

The pins are placed along the edges where they remain hidden once the piece is assembled.

Keeping the Fabric Square

A cross stitch design can look noticeably uneven if the fabric is mounted even slightly out of square.

During the stretching process, I continually check both the stitched design and the weave of the fabric.

The goal is not simply to make the fabric tight. It is to make it even, square, and properly supported.

Too much tension can distort the stitching or pull the fabric unnaturally. Too little tension can leave waves or loose areas.

Proper mounting requires a balance between the two.

Choosing the Matting

Matting can help define the needlework and provide visual separation between the textile and the frame.

Colors can be selected from the stitching itself or chosen to complement the overall design.

A single mat provides a simple presentation. Multiple mats add depth and introduce more colors from the artwork.

The opening must be carefully sized. It should not cover important stitching. It also shouldn't leave awkward fabric visible around the design.

Protecting the Needlework

Fabric art can be sensitive to light, dust, moisture, and environmental changes.

Conservation-quality framing materials help reduce unnecessary exposure to materials that may damage the textile over time.

UV-filtering glazing can also help protect thread and fabric from fading.

For detailed or valuable pieces, museum-quality glazing can provide strong UV protection while greatly reducing reflections.

The glazing should never rest directly against the needlework. Mats or appropriate spacing keep the fabric safely separated from the glass.

Choosing the Frame for Needlework Framing

The frame should complement the needlework without overpowering it.

Traditional wood finishes often work well with samplers and historic designs, while cleaner profiles can complement contemporary cross stitch.

Colors and style of stitching, and the piece's age, influence the final design. The room where it will be displayed also matters.

Preserving the Work Behind the Stitches

Counted cross stitch and needlework often represent many hours of careful work. Some pieces are newly completed, while others have been passed through families for generations.

Proper mounting is an important part of preserving that work.

At JW Frame Crafters, I mount needlework using acid-free foamboard, cotton batting, and tailor's pins. Each piece is stretched by hand. The fabric remains square, evenly supported, and properly positioned. Then, final matting, glazing, and frame are added.

The result is a finished presentation designed to protect both the craftsmanship and the time invested in every stitch.
